BiSS Updates
BiSS is working in Simulink flawlessly @ 4MHz
Klink's Hand calc for BiSS
Klink's Hand Calc for SSI
Jig Update
Changed to the smaller motor
Greatly decrease in shaft length
Magnet shaft is glued onto the motor shaft (Still waiting it to dry)
Bottom base is adhere to a 8mm thick acrylic base using acrylic double side tape (Absorb vibration)
Should solve the vibration issues and making this jig safer
Shroud still designing, need to have a peek hole for a laser RPM tachometer

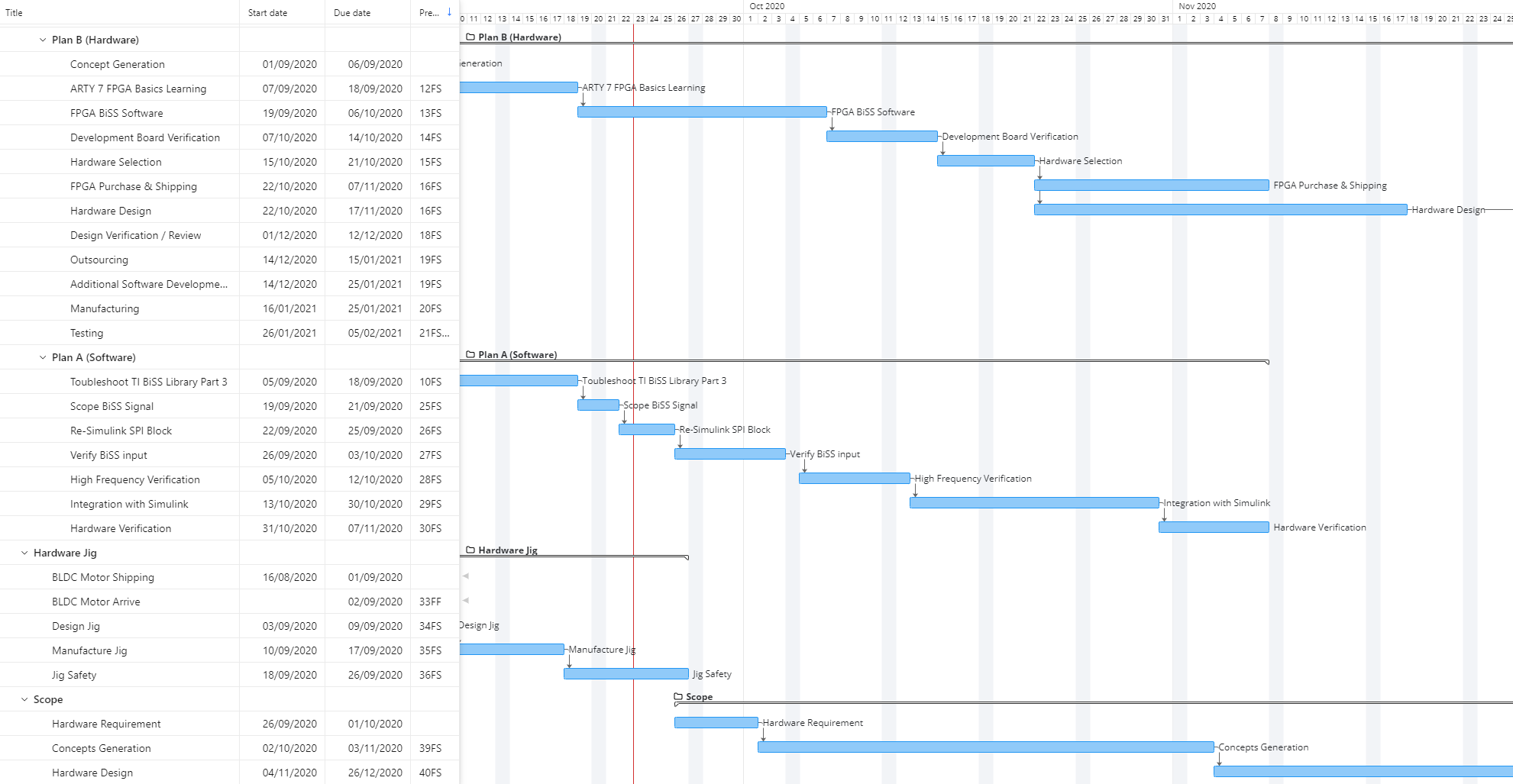

Timeline Update
