Weekly Meeting
Time & Date: 18:00 - 19:00, 15 March 2022
Location: Zoom
Link:Â Meeting Minutes
FYP Updates
BiSS Update
Design BiSS Interface Board V3
Rotated orientation - RJ45 connector facing toward Delfino USB connector
RJ45 is place upward instead of down
Remain 2Ch
Removed FPC Connector → No more PIO
Larger polyfuse footprint
Testing FPGA setup with simulink using Build and Deploy mode instead of Monitor and Tune
High Speed Data Acquisition Board
Progress Report - Presentation (Scheduled for W4 FYP Meeting)
Issues Mitigation
As the booster board expansion IO is flipped 180, it can be mitigated by using the other half of the booster board expansion IO

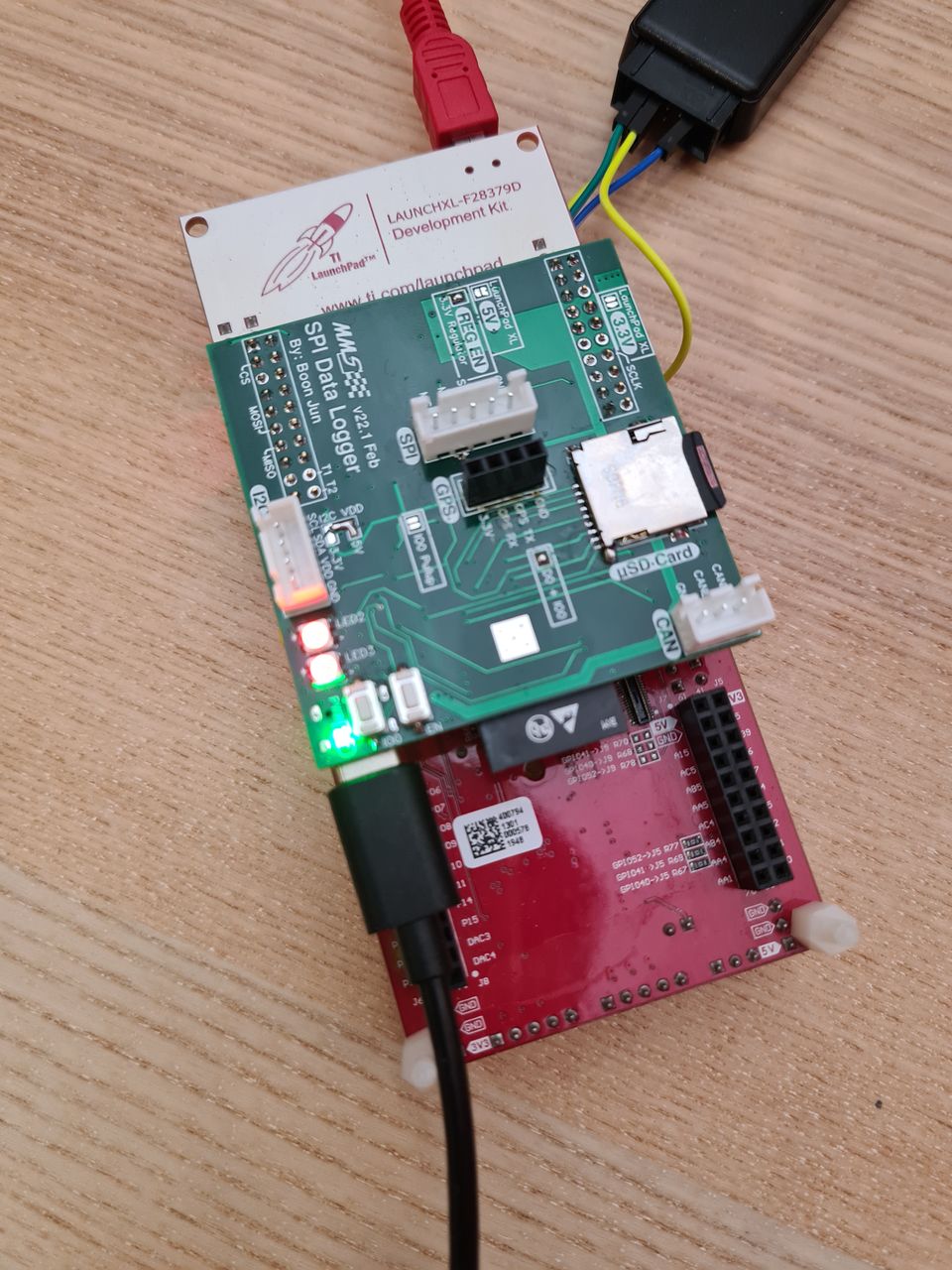

Previous Setup

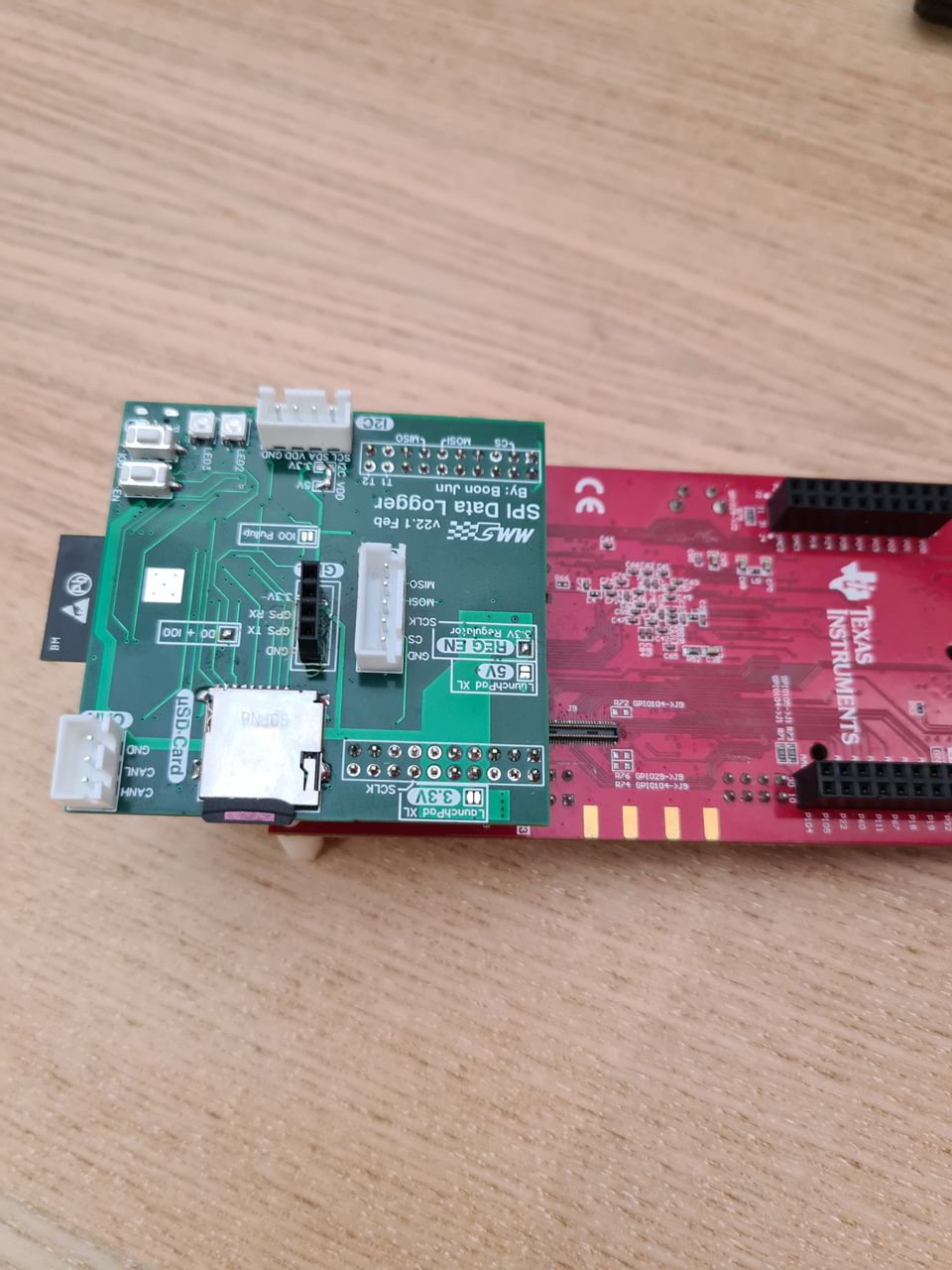

New Setup
Potential Redesign
USB-C Connector and SD card facing the same direction
PCB area within Delfino board area
Use MOLEX microfit for CAN connector
Hold off redesign as everything is working just the packaging might be an issue in the future
More Details:
