Let R1 = 47k, R2 = 100k → Vout = 3.4V
Let R1 = 68k, R2 = 100k → Vout = 2.97V
Test 1
Let R1 = 56k, R2 = 100k → Vout = 3.2V
Test 2 (Current - Using)
Absolute Max Current = 11mA
Max resistance to GND = 5V/11mA = 454.5Ohms
Let R1 = 560, R2 = 1k → Vout = 3.2V
Current = 5V/1.56kOhms = 3.2mA
R1 = 560R , R2 = 1kR

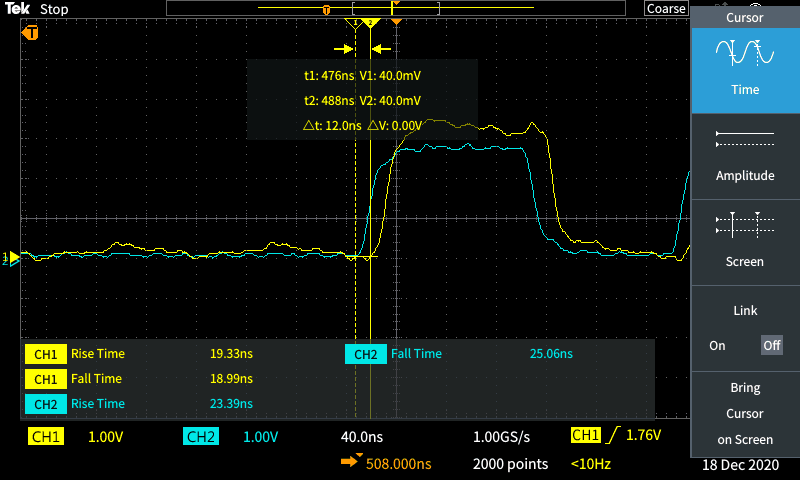

SLO Raw(Blue) and FPGA Output = SLO(Yellow)
SLO Raw(Blue) and FPGA Output = SLO(Yellow)

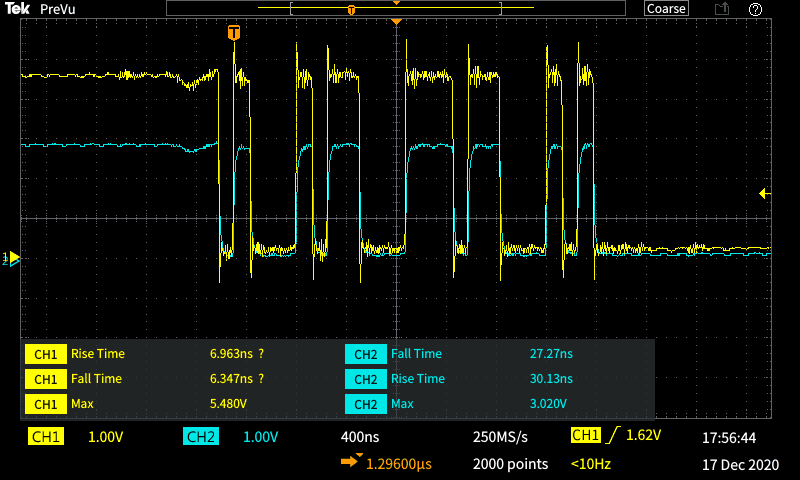

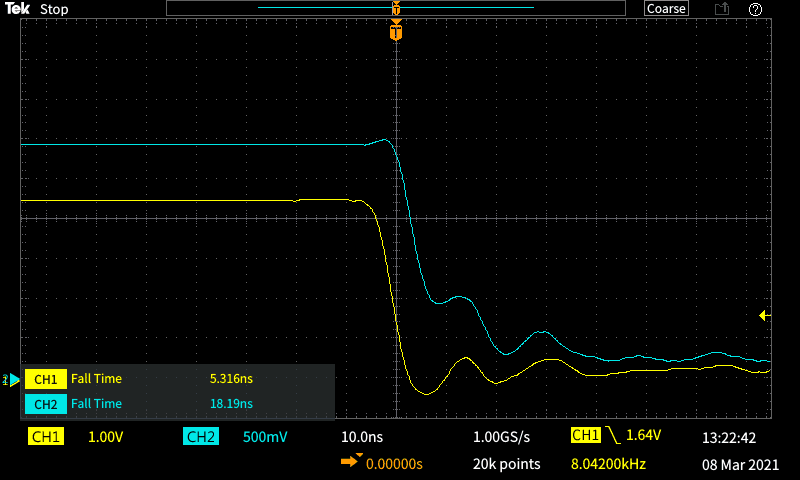

CH1: 5V SLO, CH2: 3.3V SLO

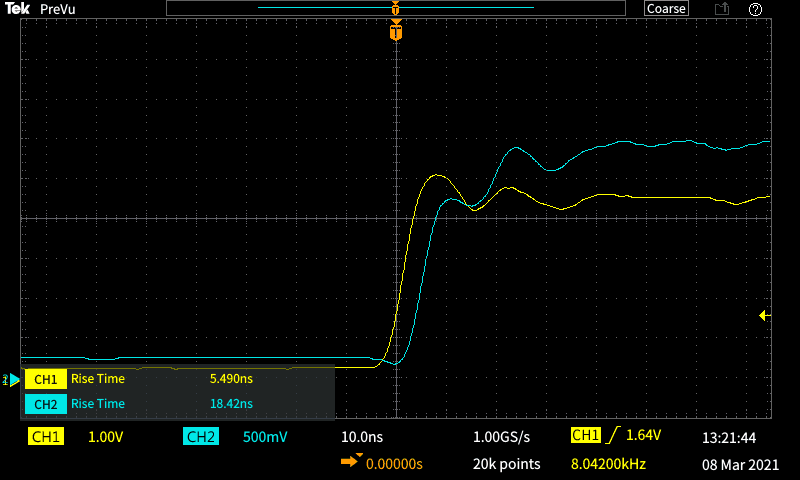

CH1: 5V SLO, CH2: 3.3V SLO
Test 3
Let R1 = 5.6k R2 = 10k → Vout = 3.2V
Current = 321uA
Test 4
Let R1 = 1.5k, R2 = 2.7k → Vout = 3.21V
Current = 1.19mA

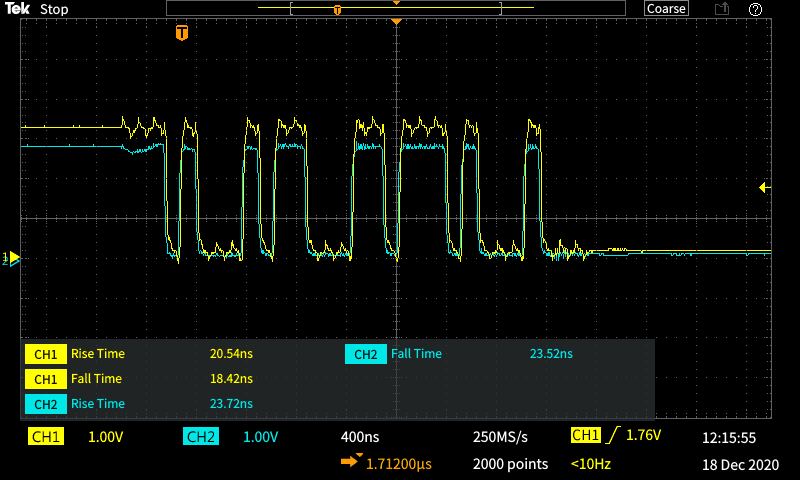

SLO Raw(Blue) and FPGA Output = SLO(Yellow)
