EXPECT SIMILAR ANALYSIS WITH BETTER QUALITY IN FUTURE
Context
Ch1 = Yellow
Ch2 = Blue
Ch1 is running on better probe than Ch2, Ch2 can't do high frequency so it can't provide better "square" feature of the signal.
The test is perform on gwinstek GDS-3154 150MHz, 5GS/s oscilloscope
4MHz Test

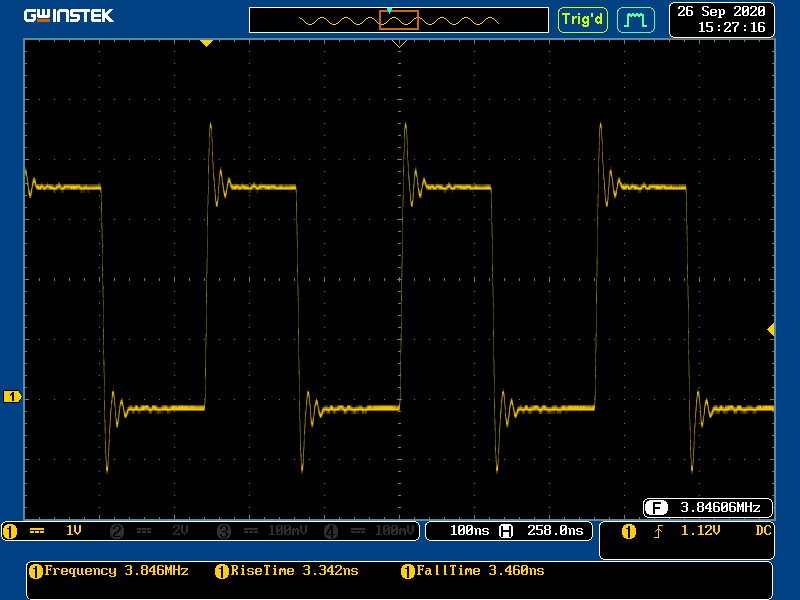

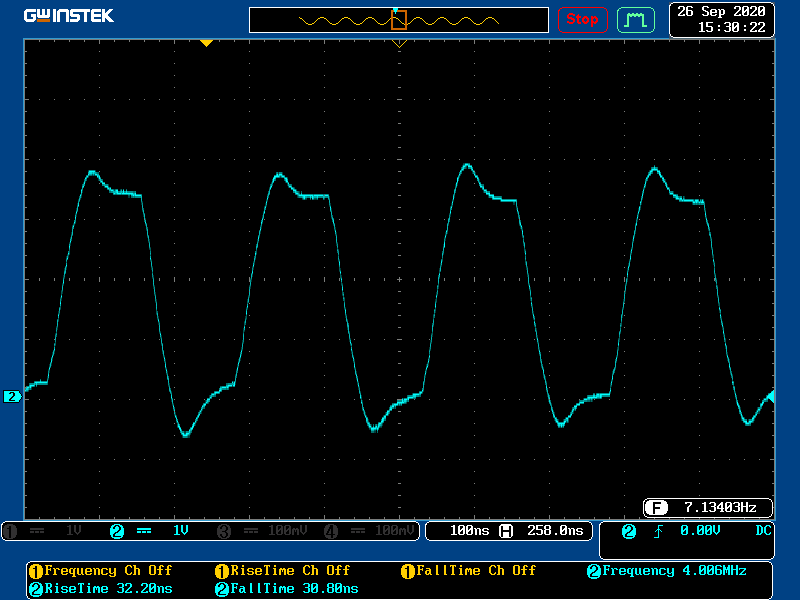

BiSS CLK (PIN47 - GPIO65)
Rise time & fall time
ePWM HRPWM (PIN40 - GPIO0)
Rise time & fall time

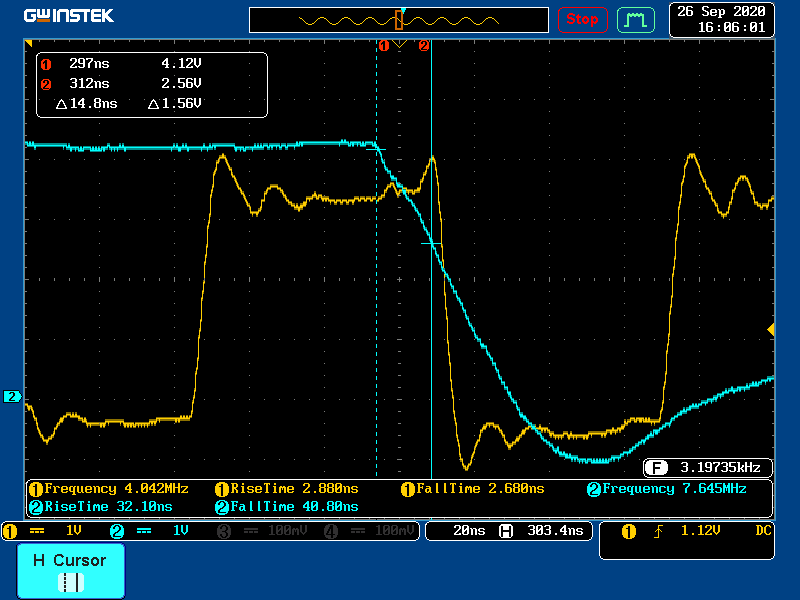

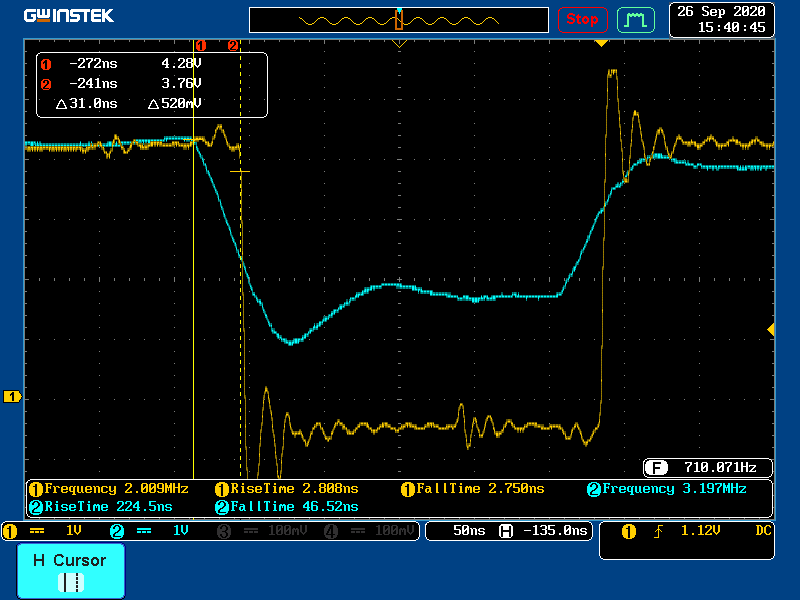

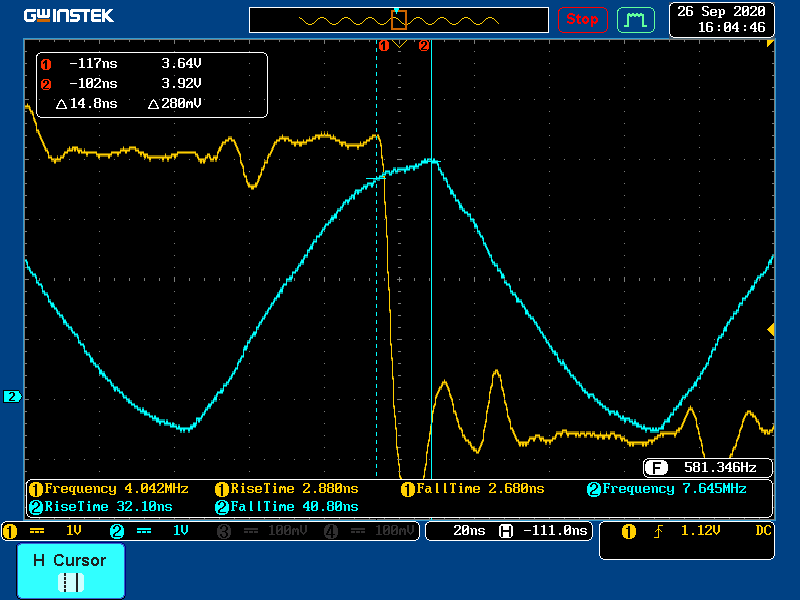

GPIO124 (PIN13) to SPI CLK Reaction Time
FPGA PWM (4.16667MHz using Pin JB[0])

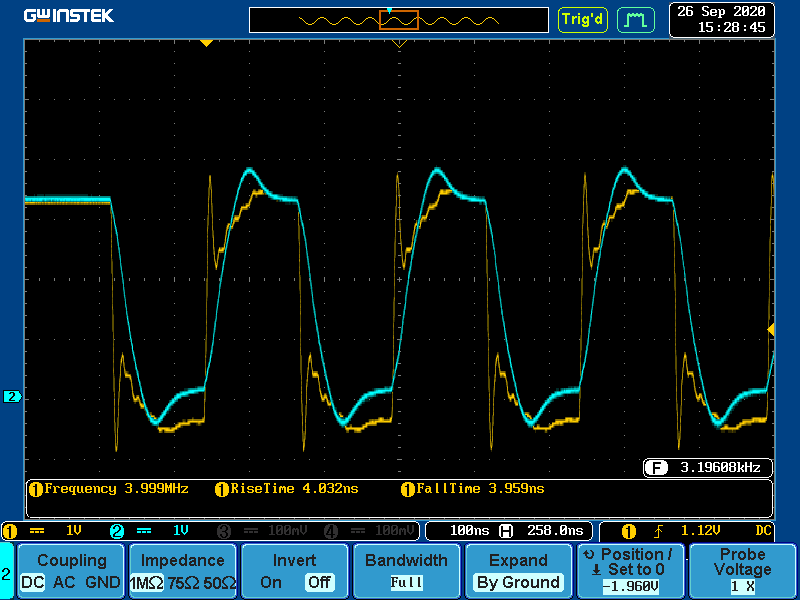

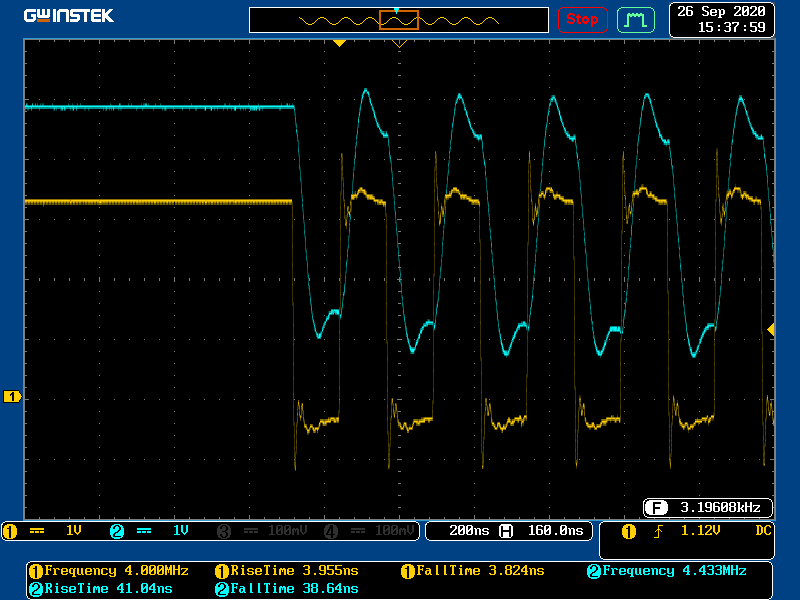

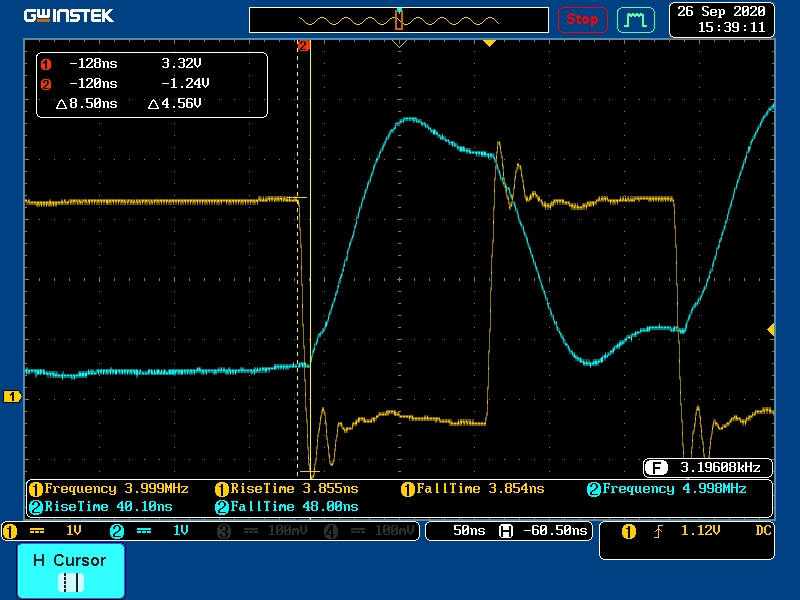

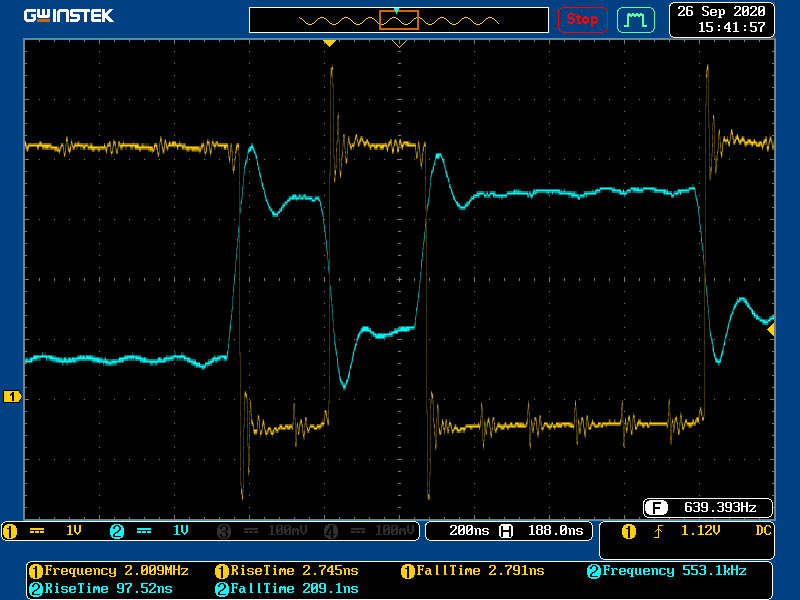

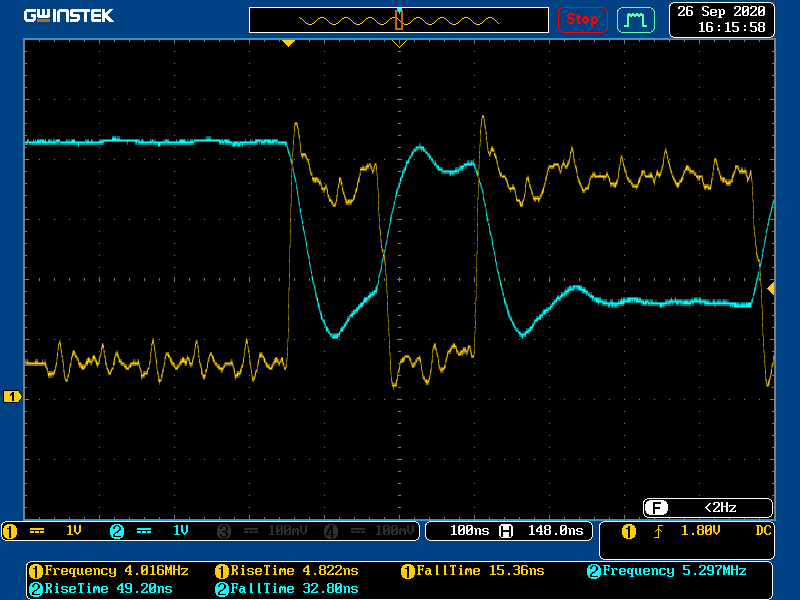

RS422 & CLK
(Blue = RS422)

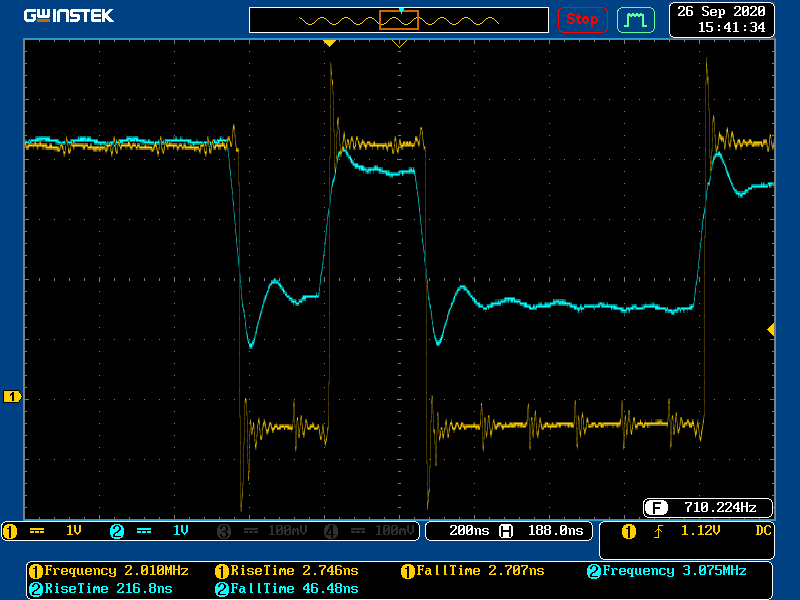

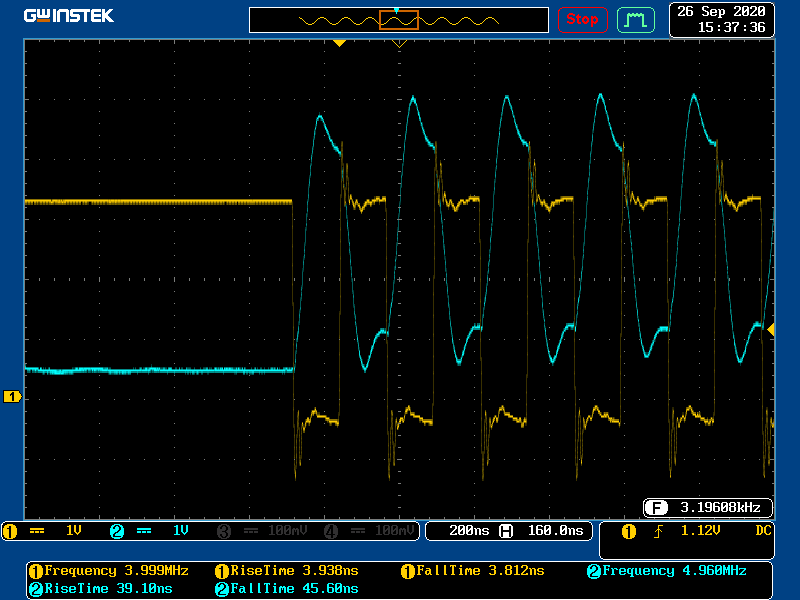

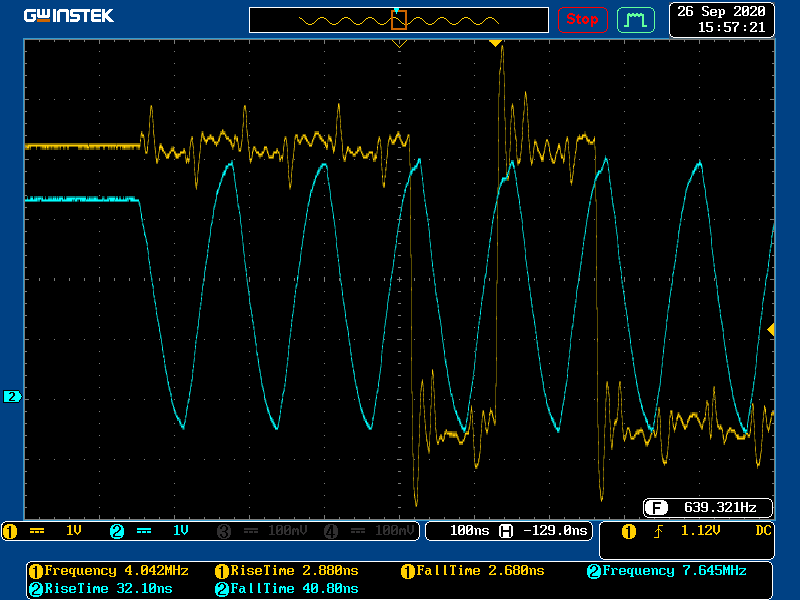

RS422 & Data
Prob Same Pin

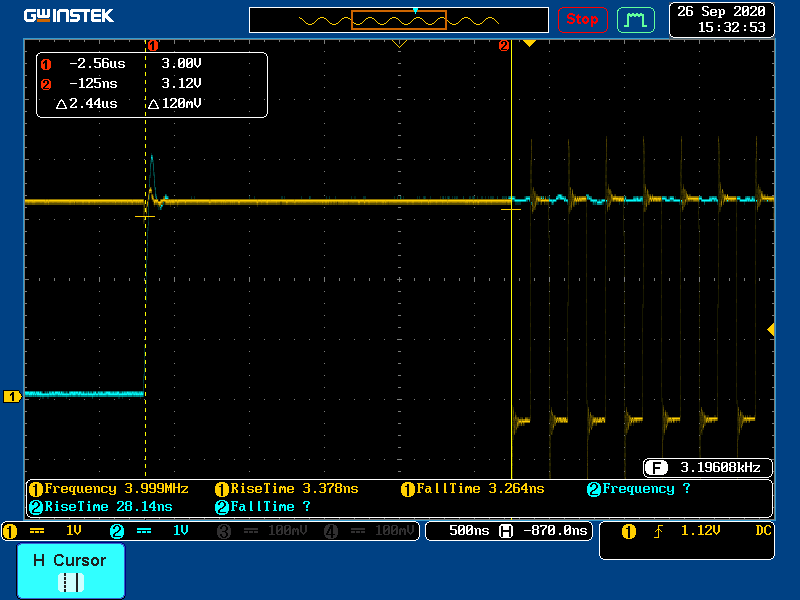

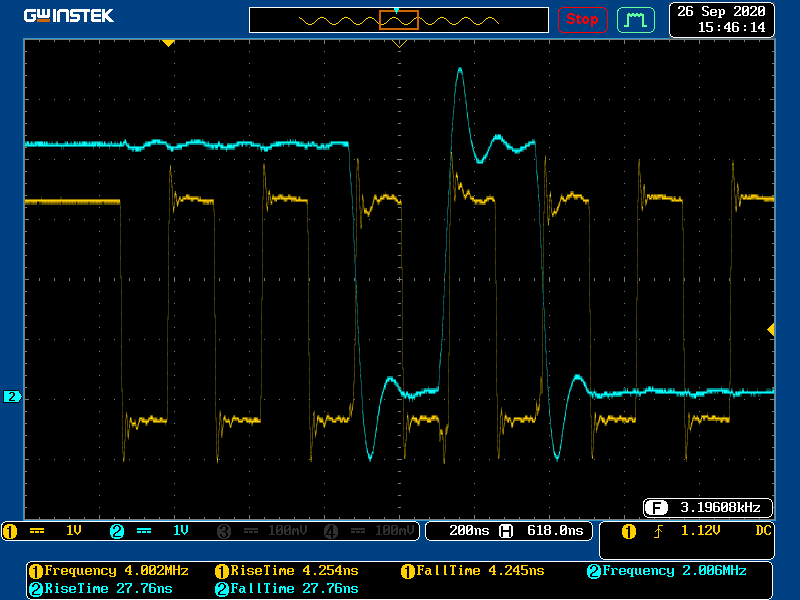

Scope Data @ 4MHz (ACK - START) (Delfino)

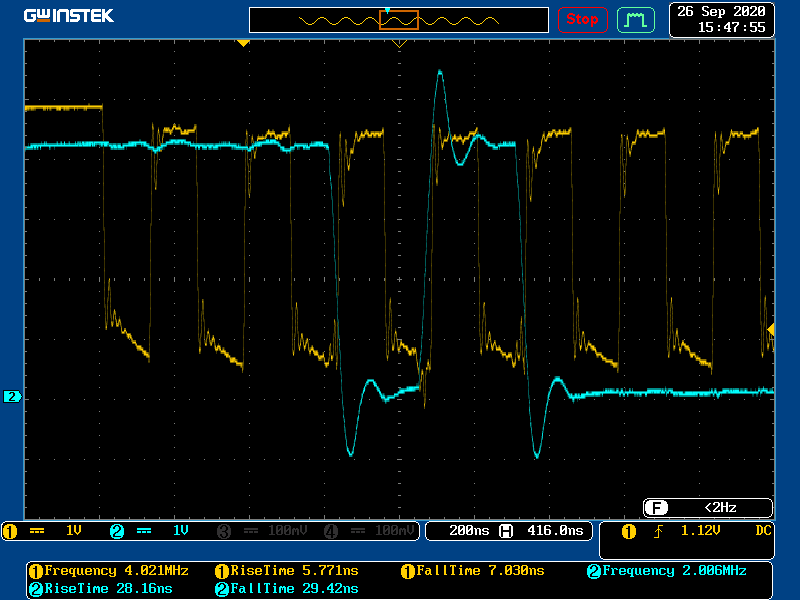

Scope Data @ 4MHz (ACK - START) (RS422(CLK) , Delfino(Data))

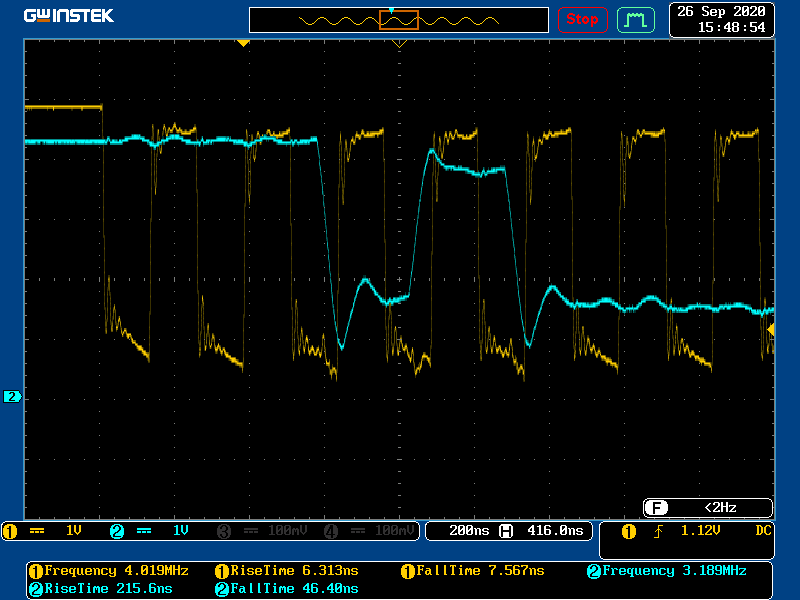

Scope Data @ 4MHz (ACK - START) (RS422(CLK) , RS422(Data))
8MHz Test

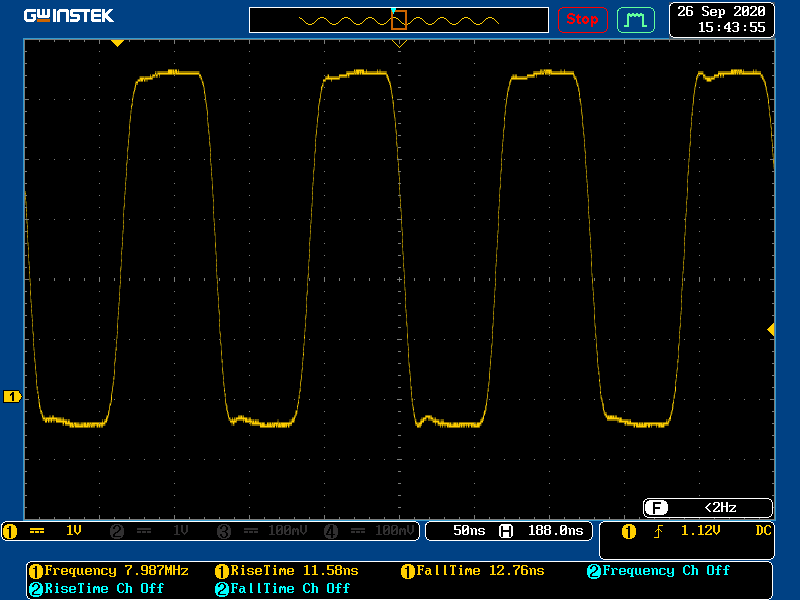

Function Generator

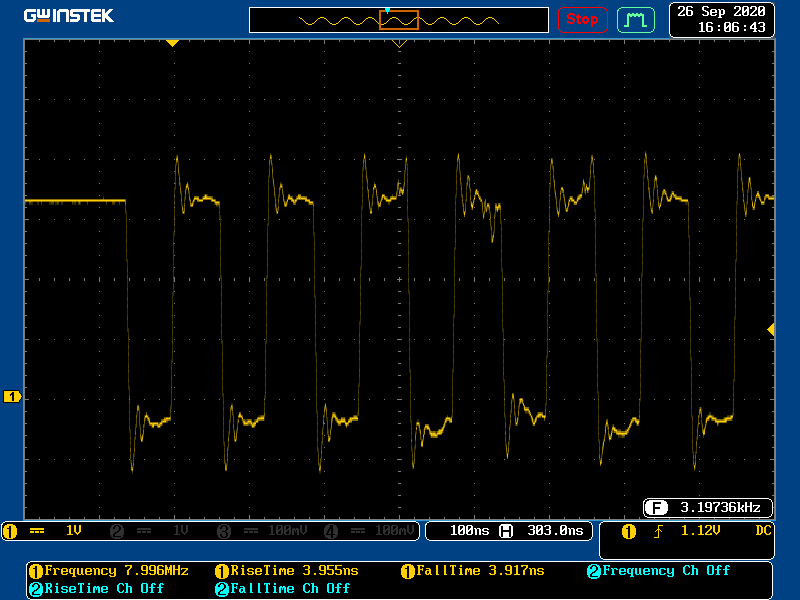

BiSS CLK (PIN47 - GPIO65)
Rise time & fall time
ePWM HRPWM (PIN40 - GPIO0)
Rise time & fall time

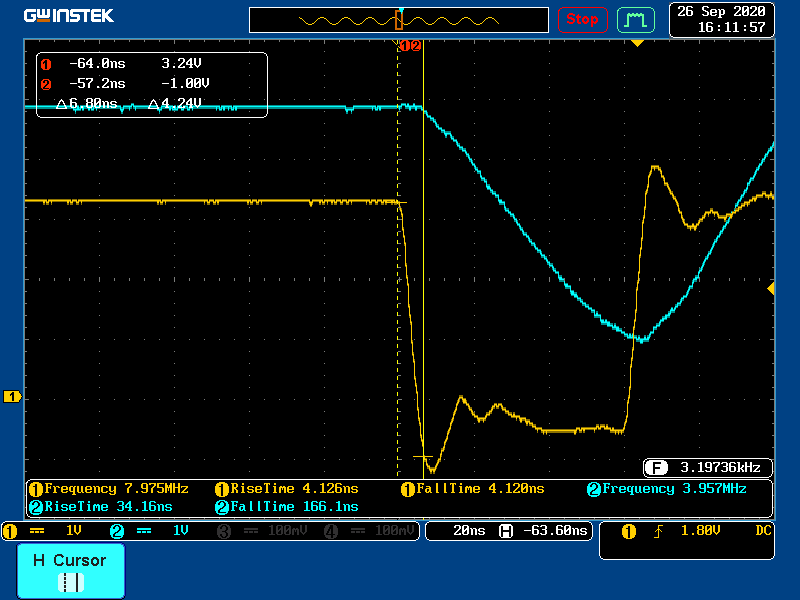

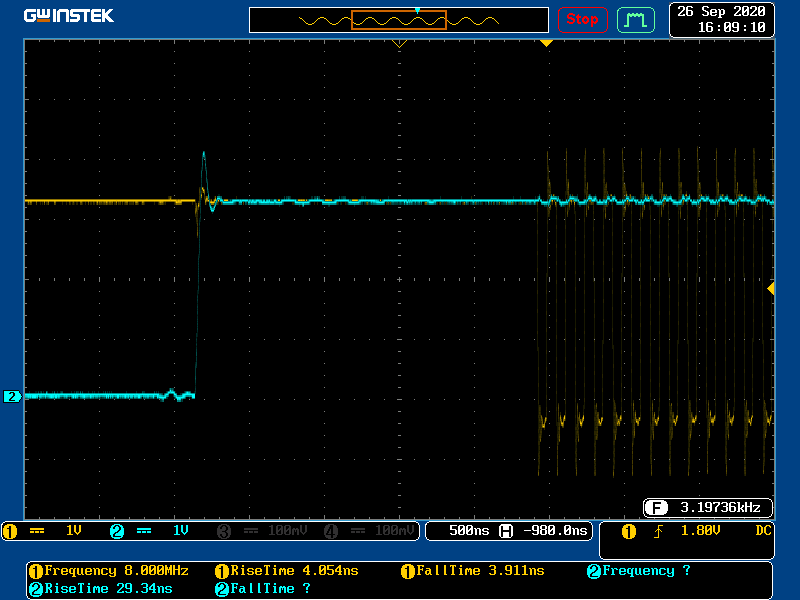

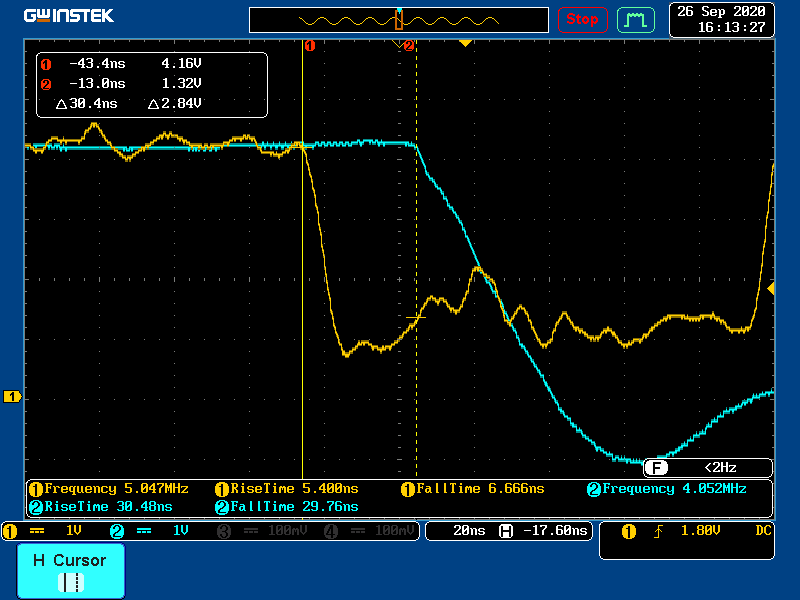

GPIO124 (PIN13) to SPI CLK Reaction Time

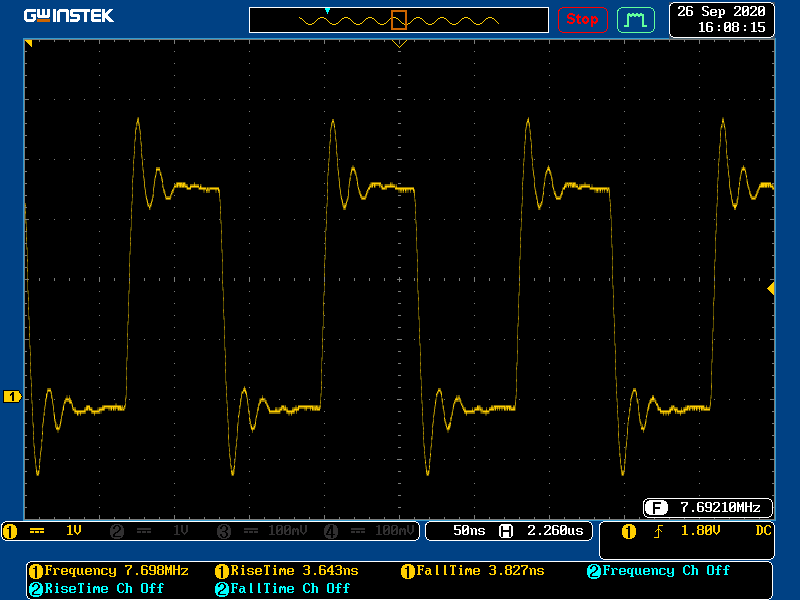

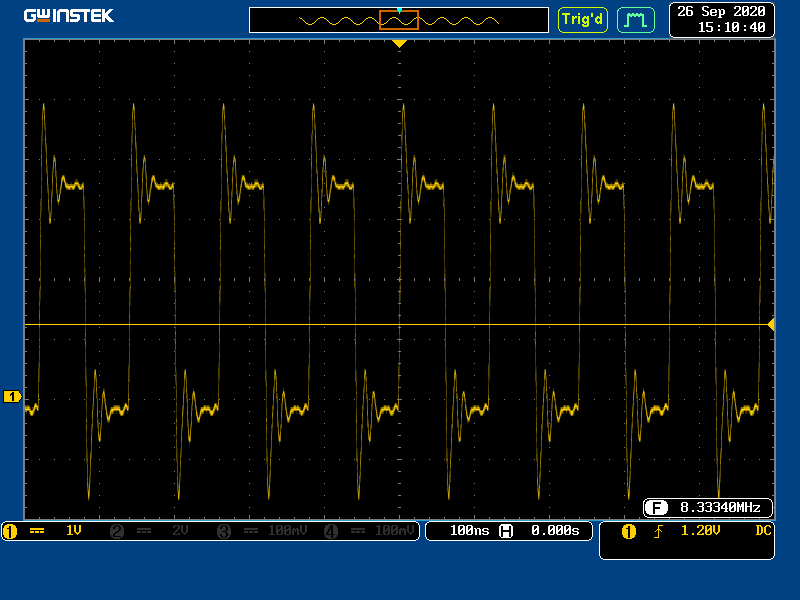

FPGA PWM (8.333MHz using Pin JB[1])

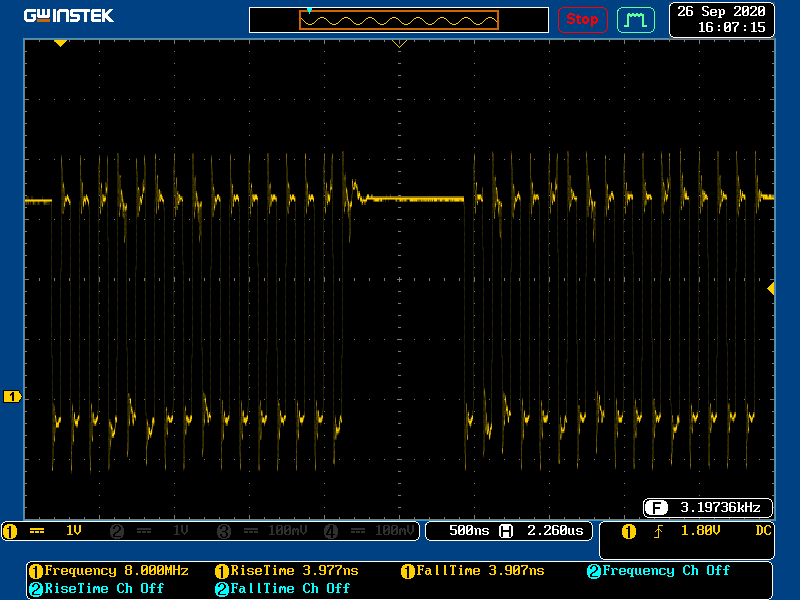

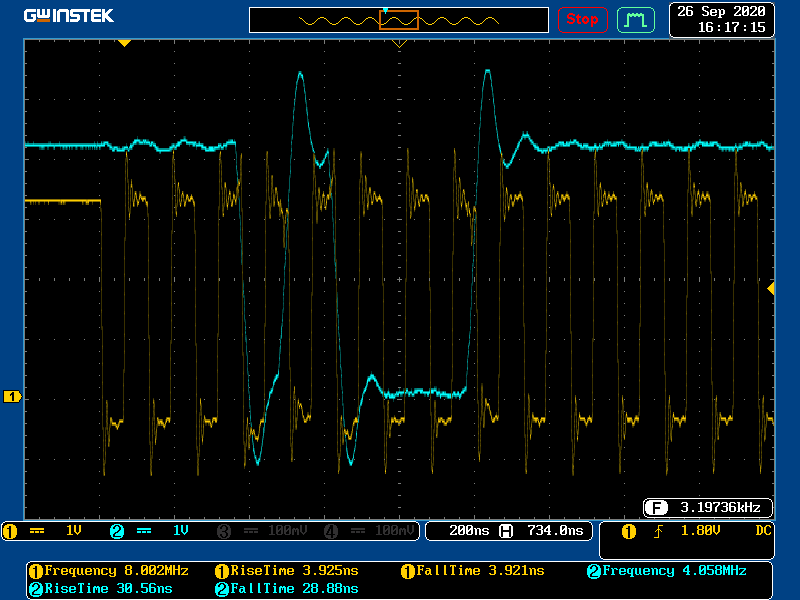

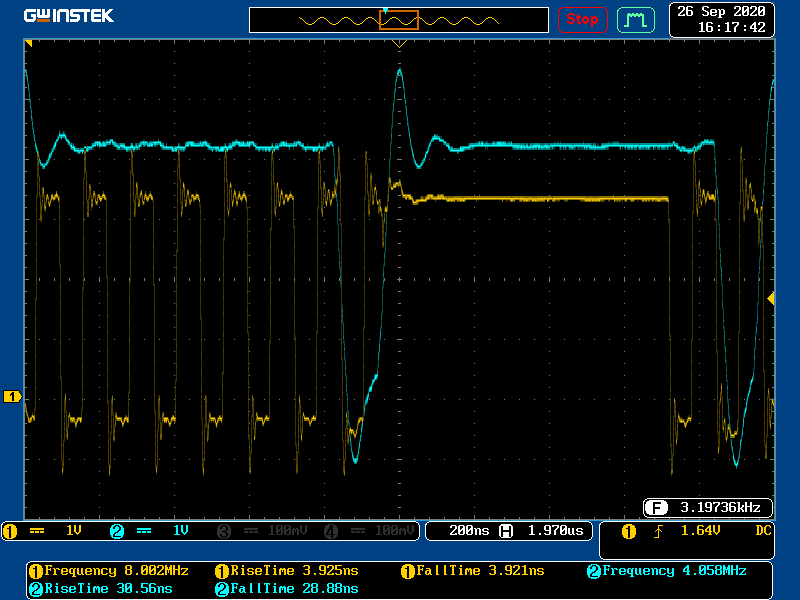

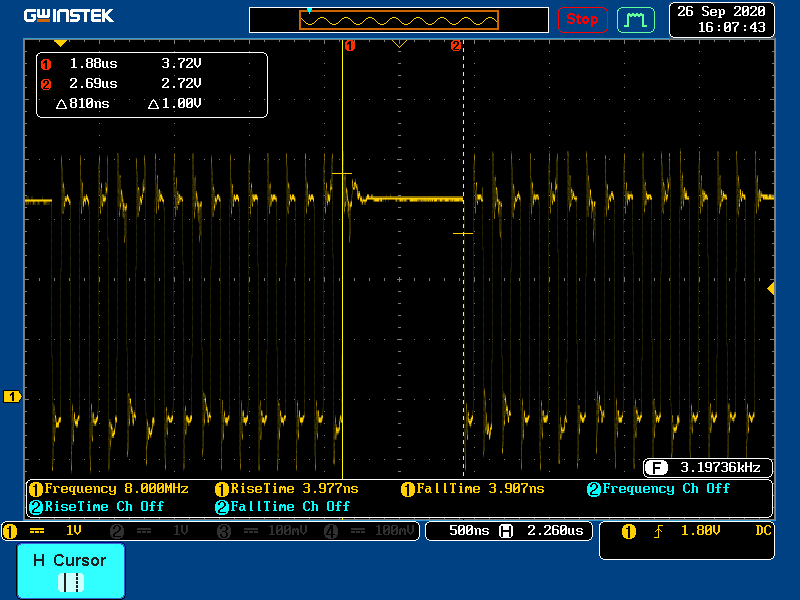

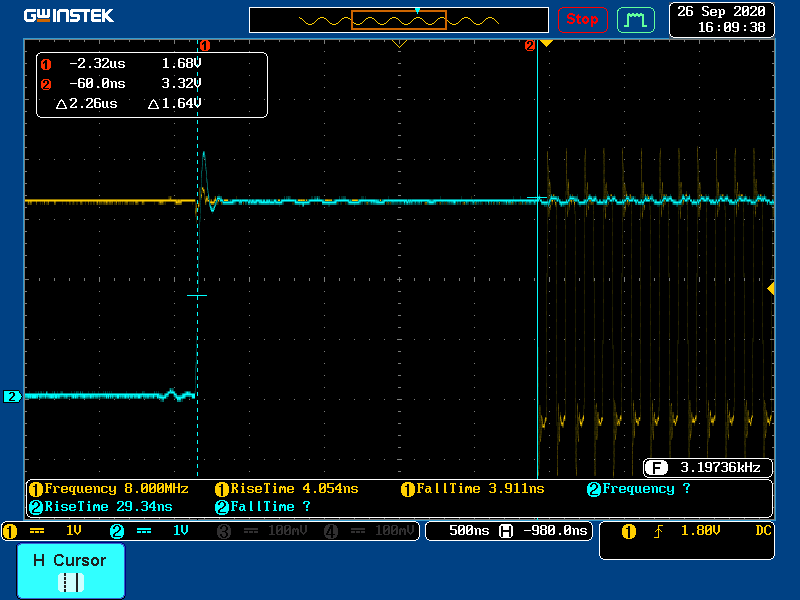

Scope Data @ 8MHz (ACK - START)

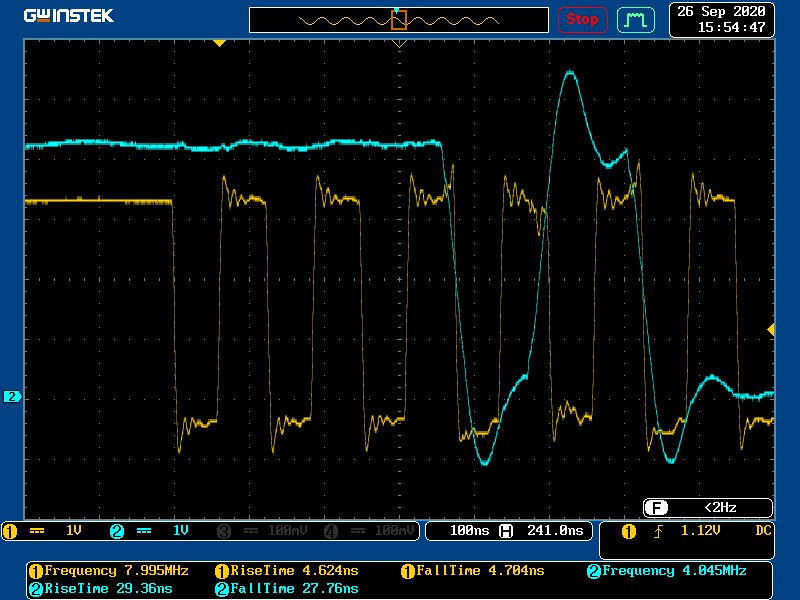

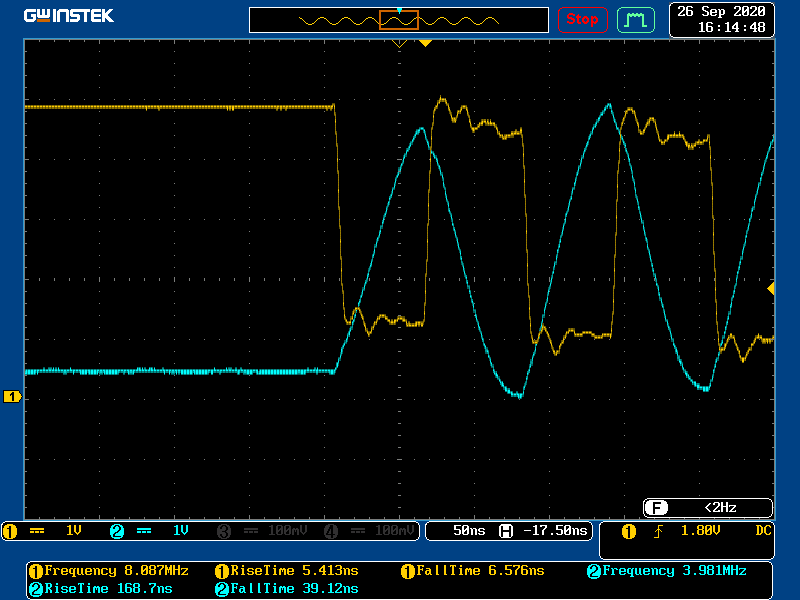

RS422 & CLK

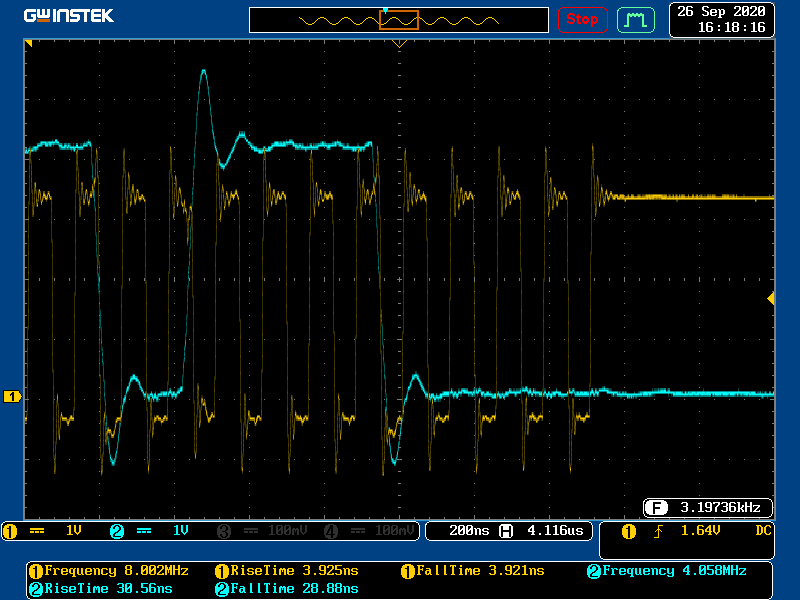

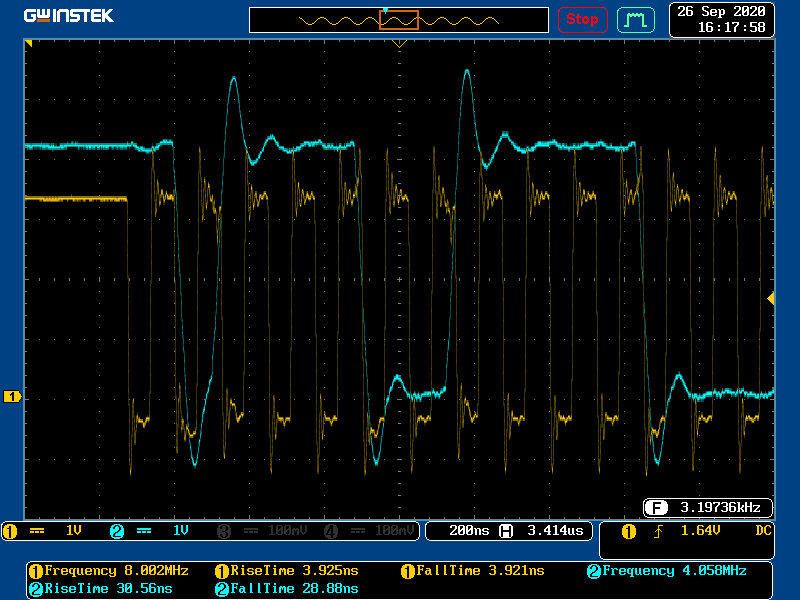

RS422 & Data
Blue - RS422 SLO line
Yellow - Delfino SPISOMI
Differential Line
One frame of data
6MHz

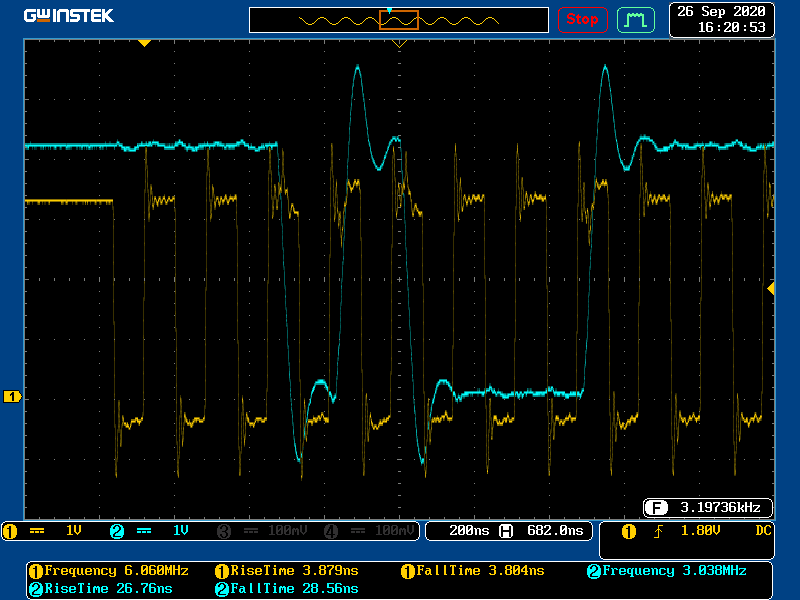

Scope Data @ 6MHz (ACK - START)
Packing List
